Member of Morris Group International
Model SMD Series
Medium Security Doors

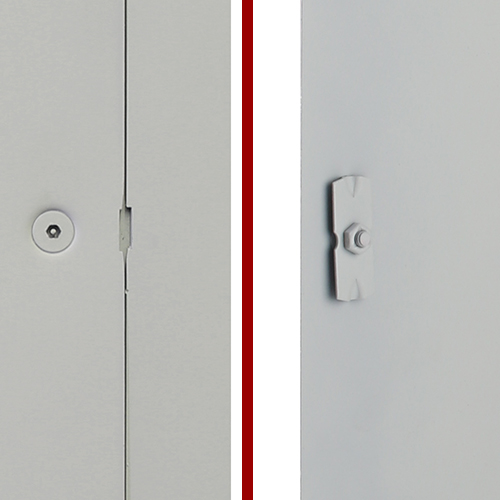

Access door and frame shall be fabricated from 12-gauge, galvannealed steel with a white prime coat finish. The door shall have rounded safety corners and a concealed pivoting rod hinge. Frame shall be one-piece construction with no mitres or welds on the face. Latch shall be allen head with security pin operated.
Doors are ideally suited for new installations or remodeling in jails, prisons, psychiatric institutions, and schools.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Medium Security Doors - standard available sizes (W x H in inches) 12 x 12, 16 x 16, 18 x 18, 24 x 24, 24 x 36, 34 x 36 | 597 KB | |||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Elmdor Access Doors Flyer (pdf) | 0 | 399 KB | ||
| | Submittal Field Reference Guide for Elmdor Access Doors Roof Hatches | 0 | 3 MB | ||
| | Elmdor Access Door Brochure | 0 | 5 MB |
Specifications
| Brand | Elmdor |
| Mount | Wall Mount |
| Material | Galvannealed Steel, Stainless Steel (Option -SS) |
| Latching System | Cylinder Key Lock (Option -CL), Cylinder Lock with Dust Shutter (Option -CLD), Allen Key Latch (Option -AKL) |
| Additional Benefits | Contains Recycled Material, Recyclable |
